3x3 narrow bezel 3.8mm video wall DID with original full new Screen lcd panel
1, Main Features :
A, Ultra-narrow border design of the current width of only 3.8mm double edge.
B, Industrial grade professional DID LCD screens, designed for industrial monitoring and multimedia information display.
C, Various display modes such as Full screen display, Display separately on each screen, Free combining display, Picture roaming, Picture overlying, Picture stretch.
D, Support 7x24 hours, 365 days of continuous power-on, high reliability and stability, product life up to 60,000 hours.
E, All screens can display the same or different signal sources on a single screen or Combinations :2x2, 2x3, 3x3, 3x4, 4x4, 5x4, 5x5 or any combination customized
2, Product Specification.
| Panel Specification |
| Model No | VD-D3D460BH |
| Panel Size | 3.8MM |
| Aspect Ratio | 16 : 9 |
| Active Display Area | 1018.35(W) x 572.5(H) |
| Backlight | LED |
| Max Resolution Support | 1920x1080(Max) |
| Color | 16.7M |
| Brightness(nits) | 700nits |
| Contrast | 3000 : 1 |
| Visual Angle (H/V) | 178°/178° |
| Response Time | <6ms |
| Life(hrs) | >50,000(hrs) |
| Video Wall Controller(Built-in each screen) |
| VGA input | 1 |
| DVI input | 1 |
| HDMI Input | 1 |
| Composite Video input | 2(BNC x 2) |
| Y,Pb,Pr/Y,Cb,Cr input | 1(BNC X 3) |
| Composite Video Output | 2(BNC X 2) |
| S-video | 2(BNC X 2) |
| Control signal input and loop out | RS232(RJ45-8) |
| Split Screen (Matrix is optional) | Support Picture in Picture(PIP/POP) |
| Video System |
| Color System | PAL/NTSC/SECAM |
| HDTV Mode | 480P, 576P, 720P, 1080P |
| OSD Display(Menu Language) | Chinese/English |
| Power |
| Power supply | AC 100V ~ 240V, 50/60Hz |
| Maximum Power Consumption | <250W |
| Standby Power Consumption | <3W |
| Temperature |
| Working Temperature | 0° ~ 50° |
| Storage Temperature | 20° ~ 60° |
| Working Humidity | 20%~80% |
| Storage Humidity | 20%~80% |
| Installation System |
| Installation | With wall bracket for each single unit lcd |
| Gross Weight | 25kg |
| Dimension | 1025.65X579.84X126.73 mm |
| Accessories |
| Split LCD Unit | Yes |
| Bracket | Yes(wall bracket for each single unit lcd) |
| Power cable | Yes |
| Remote controller | Yes |
| Video wall controller | Yes(Built-in each screen) |
| Splicing software | Yes |
3, The Solution for Video Wall System.
As for Video Wall System, we offer you 3 solution for reference, you can pick up right solution based on your requirements.

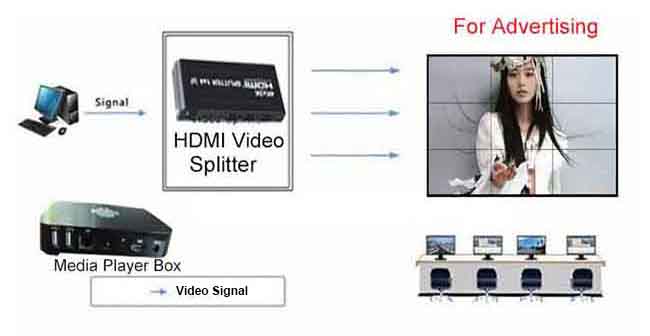

1), Display one whole content on the LCD video wall units for single input signal by using video splitter.

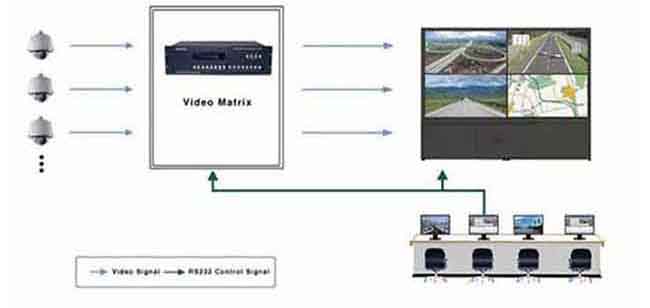

2), Display different contents on the LCD video wall units for multiple input signals by using matrix.

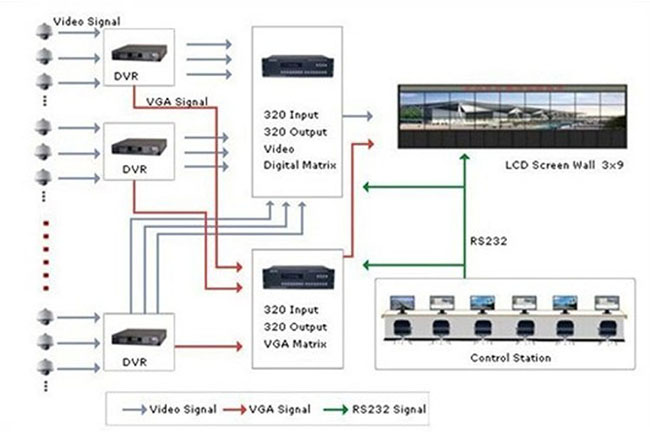

3), Display different complicated contents on the LCD video wall system for multiple input signals with various signals by using processor.
If you have any other questions, please contact our salesman as soon as possible.
