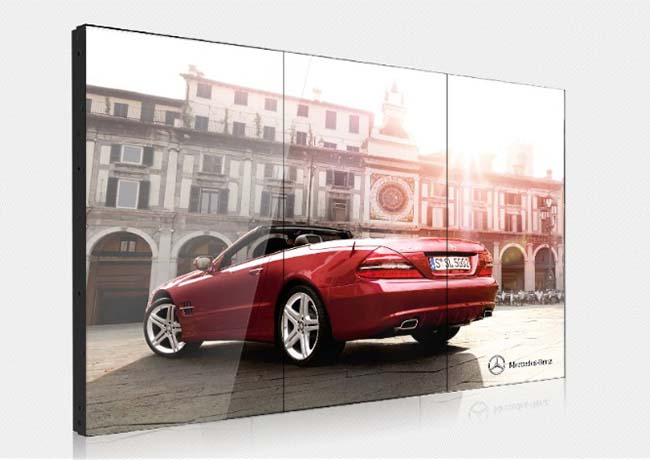

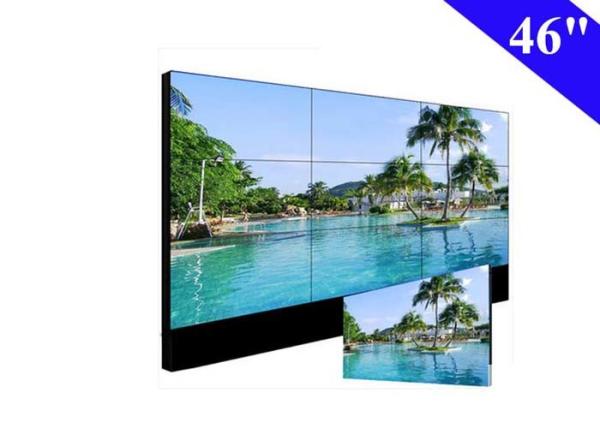

6.7mm Bezel Video Wall LCD Multi-screen System 46 inch Advertising Media Player
1, Product instruction :
Our LCD&LED Video Wall provide many kinds of solutions with variety of signals. Our LCD Video Wall is easy to install and maintain, with high stability and reliablity, Providing cost-effective products and customer-oriented services. We are not just selling the complete set of equipment but also technical support service.
In general , our price usually only include original DID LCD or LED screen panel with video wall controller, free control software. Easy installation bracket and related accessories(HDMI Splitter and Rj45 cables, Power cables). As for other devices, you need prepare them by yourself. Our quotation not include PC, and connection matrix. Unless you need PC and connection matrix from us here, we can also buy them for you from the market. Besides, if you have a large project and need some help from our company. We can also arrange our engineer to go to your country to provide the indoor installation and equipment debugging service if you would like to afford the related expense of traveling.
2, Product Specification
| Panel Specification |
| Model No | VD-D3D460EH |
| Panel Size | 6.7MM |
| Aspect Ratio | 16 : 9 |
| Active Display Area | 1018.28(W) x 572.87(H) |
| Backlight | LED |
| Max Resolution Support | 1920x1080(Max) |
| Color | 16.7M |
| Brightness(nits) | 700nits |
| Contrast | 4000 : 1 |
| Visual Angle (H/V) | 178°/178° |
| Response Time | <6ms |
| Life(hrs) | >50,000(hrs) |
| Video Wall Controller(Built-in each screen) |
| VGA input | 1 |
| DVI input | 1 |
| HDMI Input | 1 |
| Composite Video input | 2(BNC x 2) |
| Y,Pb,Pr/Y,Cb,Cr input | 1(BNC X 3) |
| Composite Video Output | 2(BNC X 2) |
| S-video | 2(BNC X 2) |
| Control signal input and loop out | RS232(RJ45-8) |
| Split Screen (Matrix is optional) | Support Picture in Picture(PIP/POP) |
| Video System |
| Color System | PAL/NTSC/SECAM |
| HDTV Mode | 480P, 576P, 720P, 1080P |
| OSD Display(Menu Language) | Chinese/English |
| Power |
| Power supply | AC 100V ~ 240V, 50/60Hz |
| Maximum Power Consumption | <230W |
| Standby Power Consumption | <3W |
| Temperature |
| Working Temperature | 0° ~ 50° |
| Storage Temperature | 20° ~ 60° |
| Working Humidity | 20%~80% |
| Storage Humidity | 20%~80% |
| Installation System |
| Installation | With wall bracket for each single unit lcd |
| Gross Weight | 22kg |
| Dimension | 1024X578.6X141.5 mm |
| Accessories |
| Split LCD Unit | Yes |
| Bracket | Yes(wall bracket for each single unit lcd) |
| Power cable | Yes |
| Remote controller | Yes |
| Video wall controller | Yes(Built-in each screen) |
| Splicing software | Yes |
