Wall Mount LCD Video Wall Screens 47 inch with 4.9mm Ultra Narrow Bezel
1, Description of LCD Video Wall.
(1), Screen seam between the non-display area is only 4.9 mm;
(2), Using image point pixel dynamic cutting processing technology to compensate for the details of image, it can make the low pixel image display clearly;

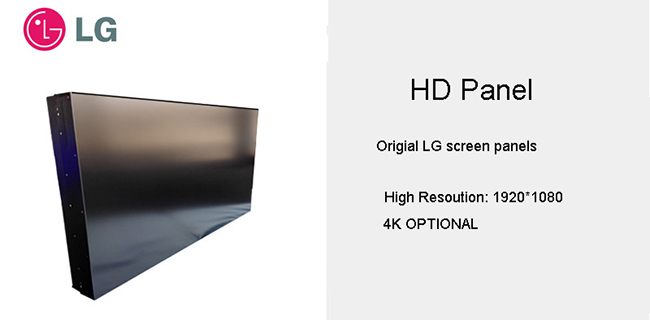

(3), The screen bodies use unified international multinational group three major brands such as Samsung, LG and Sharp and so on;
(4), LCD product itself with low power consumption and last much longer.

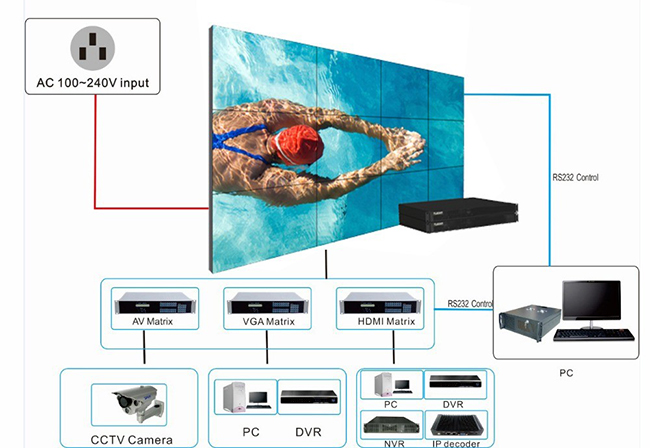

(5), Through RS232 serial port to realize the remote control function; rapid response identification technology, to ensure that the video will play smoothly and pictures show without distortion;
(6), Service life of this product can up to 50000 hours, a new ultra wide angle of view extension technology, which comprehensively ensures the image in the display angle without distortion and deformation.
2, Application of LCD Video Wall
♦ Education and Conference System
♦ Safety Monitoring System of Mining and Energy Industry
♦ Commercial Industry Used in the display terminal of commercial industry, such as advertising, media, product presentations
♦ Financial Industry
Used in the information display terminal of financial industry, such as stock and security market. .
♦ Transportation Industry
Used in the information display terminal of transportation industry, such as airports, ports, metro, highway.
♦ Management and Control System
Used in the display terminal of management and control system such as fire-fighting, meteorology, maritime, food prevention, transportation hub
3, Product Specification
| Panel Specification |
| Model No | VD-D3D470AS |
| Panel Size | 4.9MM |
| Aspect Ratio | 16 : 9 |
| Active Display Area | 1040(W) x 585.1(H) |
| Backlight | LED |
| Max Resolution Support | 1920x1080(Max) |
| Color | 16.7M |
| Brightness(nits) | 500nits |
| Contrast | 1400 : 1 |
| Visual Angle (H/V) | 178°/178° |
| Response Time | <6ms |
| Life(hrs) | >50,000(hrs) |
| Video Wall Controller(Built-in each screen) |
| VGA input | 1 |
| DVI input | 1 |
| HDMI Input | 1 |
| Composite Video input | 2(BNC x 2) |
| Y,Pb,Pr/Y,Cb,Cr input | 1(BNC X 3) |
| Composite Video Output | 2(BNC X 2) |
| S-video | 2(BNC X 2) |
| Control signal input and loop out | RS232(RJ45-8) |
| Split Screen (Matrix is optional) | Support Picture in Picture(PIP/POP) |
| Video System |
| Color System | PAL/NTSC/SECAM |
| HDTV Mode | 480P, 576P, 720P, 1080P |
| OSD Display(Menu Language) | Chinese/English |
| Power |
| Power supply | AC 100V ~ 240V, 50/60Hz |
| Maximum Power Consumption | <120W |
| Standby Power Consumption | <3W |
| Temperature |
| Working Temperature | 0° ~ 50° |
| Storage Temperature | 20° ~ 60° |
| Working Humidity | 20%~80% |
| Storage Humidity | 20%~80% |
| Installation System |
| Installation | With wall bracket for each single unit lcd |
| Gross Weight | 32kg |
| Dimension | 1044.9X590X123 mm |
| Accessories |
| Split LCD Unit | Yes |
| Bracket | Yes(wall bracket for each single unit lcd) |
| Power cable | Yes |
| Remote controller | Yes |
| Video wall controller | Yes(Built-in each screen) |
| Splicing software | Yes |
