Big Size DID Splicing LCD Wall Mount Video Wall advertising media player
1, Product introduction
See your message displayed bold, bright, and big. Our LCD video wall displays are an ideal solution for demanding space-constrained control rooms. LCD displays can be stacked together to achieve virtually any screen size, setting a new standard for large format, high-impact display solutions. Your message is as limitless as your imagination. Built with high quality industrial grade components for demanding applications. LCD displays deliver you an unsurpassed image quality with incredible color depth and contrast. The LCD video walls solutions are available in High Definition (Full HD) Resolution (1920 x 1080).
2, Product Specification
| Panel Specification |
| Model No | VD-D3D580CH |
| Panel Size | 3.8MM |
| Aspect Ratio | 16 : 9 |
| Active Display Area | 1279.28(W) x 734.44(H) |
| Backlight | LED |
| Max Resolution Support | 1920x1080(Max) |
| Color | 16.7M |
| Brightness(nits) | 800nits |
| Contrast | 4000 : 1 |
| Visual Angle (H/V) | 178°/178° |
| Response Time | <6ms |
| Life(hrs) | >50,000(hrs) |
| Video Wall Controller(Built-in each screen) |
| VGA input | 1 |
| DVI input | 1 |
| HDMI Input | 1 |
| Composite Video input | 2(BNC x 2) |
| Y,Pb,Pr/Y,Cb,Cr input | 1(BNC X 3) |
| Composite Video Output | 2(BNC X 2) |
| S-video | 2(BNC X 2) |
| Control signal input and loop out | RS232(RJ45-8) |
| Split Screen (Matrix is optional) | Support Picture in Picture(PIP/POP) |
| Video System |
| Color System | PAL/NTSC/SECAM |
| HDTV Mode | 480P, 576P, 720P, 1080P |
| OSD Display(Menu Language) | Chinese/English |
| Power |
| Power supply | AC 100V ~ 240V, 50/60Hz |
| Maximum Power Consumption | <300W |
| Standby Power Consumption | <3W |
| Temperature |
| Working Temperature | 0° ~ 50° |
| Storage Temperature | 20° ~ 60° |
| Working Humidity | 20%~80% |
| Storage Humidity | 20%~80% |
| Installation System |
| Installation | With wall bracket for each single unit lcd |
| Gross Weight | 37kg |
| Dimension | 1215.3X686X137 mm |
| Accessories |
| Split LCD Unit | Yes |
| Bracket | Yes(wall bracket for each single unit lcd) |
| Power cable | Yes |
| Remote controller | Yes |
| Video wall controller | Yes(Built-in each screen) |
| Splicing software | Yes |

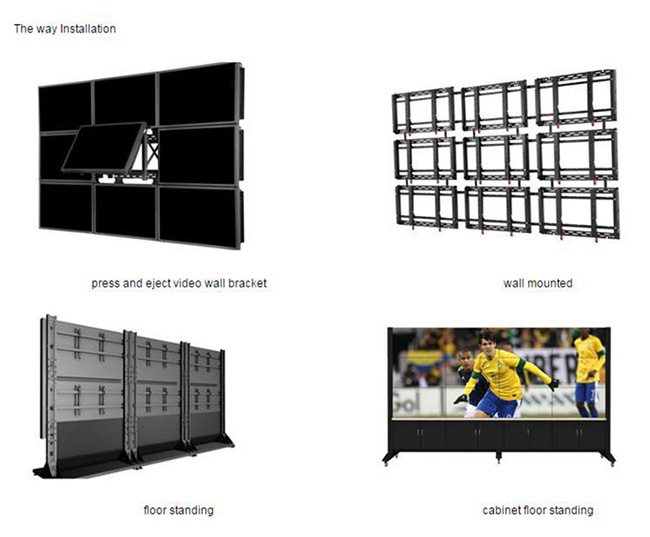

3, Installation Types.
Which one video wall installation types can meet your requirements ? Please confirm the installaion types with our salesman.
