Ultra narrow bezel seamless DID lcd video wall for rental exhibition show
1, Description :
This model uses a liquid crystal display (LCD) of amorphous silicon TFT as switching components. This model is composed of a TFT LCD panel, a driver circuit, and an ass’y KIT of source PBA. This 48.0”
model has a resolution of a 1920 x 1080 and can display up to 16.7 million colors with the wide viewing
angle of 89° or a higher degree in all directions. This panel is designed to support applications by
providing a excellent performance function of the flat panel display such as home-alone multimedia TFT-
LCD TV and a high definition TV.
We provide many kinds of solutions with variety of signals. Our LCD Video Wall is easy to install and maintain, with high stability and reliability,Providing cost-effective products and customer-oriented services.we are not just selling the complete set of equipment but also technical support service.
In general, our offer only includes Original DID LCD or LED Screen Panel with video wall controller, free control software, Easy installation bracket and related Accessories(VGA Cables or RJ45 Cables, Power Cables). As for other devices, you need prepare them by yourself, Our quotation not include PC, VGA/HDMI Splitter, RS232-RJ45 Connectors and Connection matrix, Unless you need them from us here, We can also buy them for you from the market. Besides, If you have a large project, need some help from our company. We can also arrange our engineer to go to your country to provide the in-door installation and equipment debugging service if you would like to afford the related expenses of traveling.
2, Product Specification
| Panel Specification |
| Model No | VD-D3D480A |
| Panel Size | 15MM |
| Aspect Ratio | 16 : 9 |
| Active Display Area | 1054.08(W) x 592.92(H) |
| Backlight | LED |
| Max Resolution Support | 1920x1080(Max) |
| Color | 16.7M |
| Brightness(nits) | 700nits |
| Contrast | 5000 : 1 |
| Visual Angle (H/V) | 178°/178° |
| Response Time | <6ms |
| Life(hrs) | >50,000(hrs) |

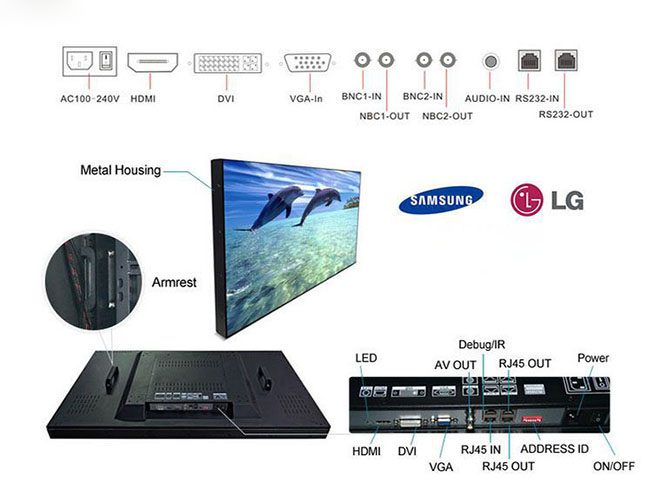

| Video Wall Controller(Built-in each screen) |
| VGA input | 1 |
| DVI input | 1 |
| HDMI Input | 1 |
| Composite Video input | 2(BNC x 2) |
| Y,Pb,Pr/Y,Cb,Cr input | 1(BNC X 3) |
| Composite Video Output | 2(BNC X 2) |
| S-video | 2(BNC X 2) |
| Control signal input and loop out | RS232(RJ45-8) |
| Split Screen (Matrix is optional) | Support Picture in Picture(PIP/POP) |
| Video System |
| Color System | PAL/NTSC/SECAM |
| HDTV Mode | 480P, 576P, 720P, 1080P |
| OSD Display(Menu Language) | Chinese/English |
| Power |
| Power supply | AC 100V ~ 240V, 50/60Hz |
| Maximum Power Consumption | <240W |
| Standby Power Consumption | <3W |
| Temperature |
| Working Temperature | 0° ~ 50° |
| Storage Temperature | 20° ~ 60° |
| Working Humidity | 20%~80% |
| Storage Humidity | 20%~80% |
| Installation System |
| Installation | With wall bracket for each single unit lcd |
| Gross Weight | 35kg |
| Dimension | 1067.2X608.5X128 mm |
| Accessories |
| Split LCD Unit | Yes |
| Bracket | Yes(wall bracket for each single unit lcd) |
| Power cable | Yes |
| Remote controller | Yes |
| Video wall controller | Yes(Built-in each screen) |
| Splicing software | Yes |

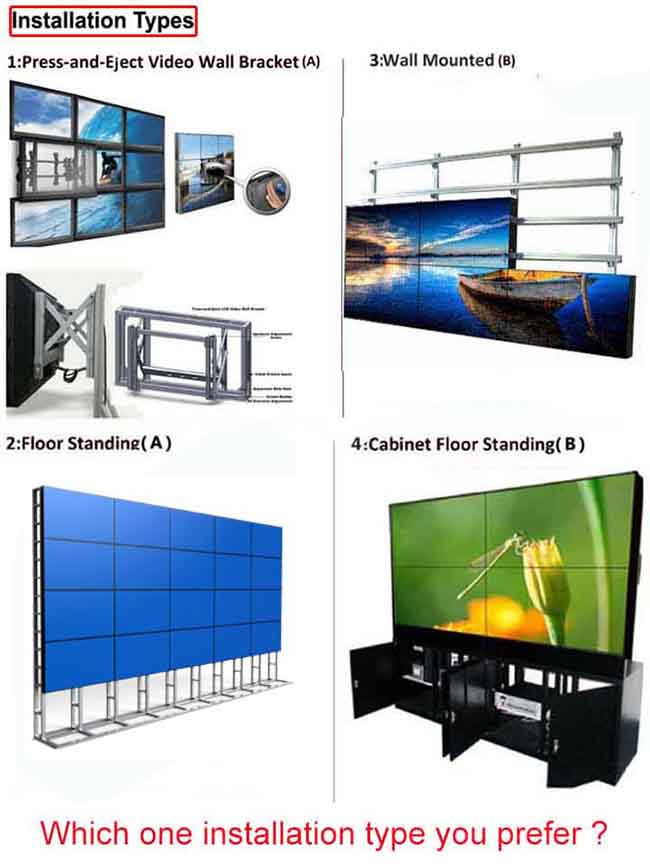

3, Installation Types.
Which one video wall solution can meet your requirements ? Please confirm the solution with our salesman. If you have any other question, please contact our salesman as soon as possible
If you have any other questions, please contact our salesman as soon as possible.
