1920x1080 HD LCD Video Wall 3.8mm IPS Screen Panel 500Nits Brightness
1, Main Features :
LCD video walls are designed to deliver even the largest images with stunning clarity. Virtually seamless bezel combined with LED light source brings you an excellent visual experience, in terms of resolution, brightness, contrast and viewing angles. The combination of rugged design and industrial-grade components can withstand the tough demands of industrial applications. Compared to conventional products, results show lower power consumption and long lifetimes.
Available in Full HD resolutions, high-resolution LCD video walls are ideal for demanding control room environments where image quality and accuracy are of utmost importance.
LCD video wall design is further engineered to provide a wide viewing angle of 178°, resulting in superior image quality and outstanding color uniformity.
LCD video walls are Eco friendly, as LED contains no mercury or other harmful materials. LED backlights reduce burn-in and ensure long life of the product with lower power consumption.
- Diverse Inputs and Outputs

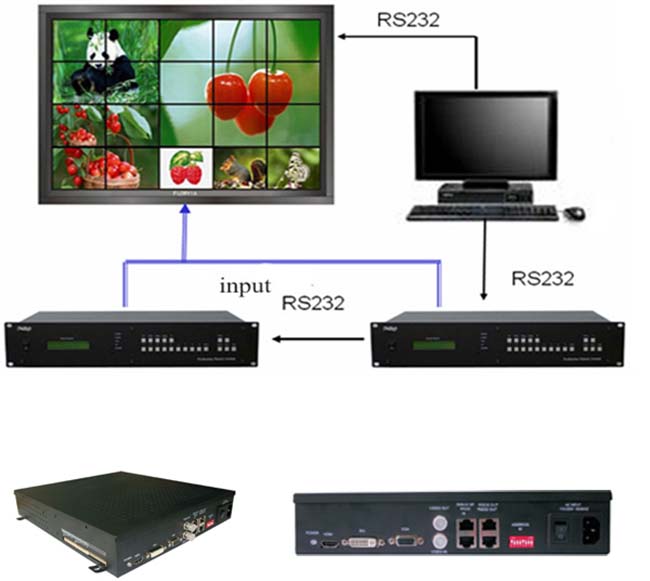

LCD video walls are equipped with various connectivity ports to support various inputs/ outputs without requiring additional processors. Digital DVI-I, CVBS on BNC, HDMI. ports are available as standard inputs and Digital DVI-D, RS422 RJ45- as standard outputs. Multiple options like RS232C Dsub-9, R422 RJ45, Ethernet RJ45 are available for control.
- Unified Control Module LCD video wall
At the Core of each LCD display architecture lies a unified control box design that integrates and encapsulates the entire processing equipment and power module in to one unit. This helps to make your LCD display highly fault tolerant offering low MTTR and high MTBF thus increasing the display system’s overall reliability, ease of operation and maintenance.
LCD video walls are accessible over the IP through browser / server architecture based software tool for monitoring, control and diagnostic purpose. This software provides the operator with direct feedback on the status of the system with multiple levels of alarms.
scalable and expandable LCD panels are designed for a variety of applications such as control centers, NOC rooms, airports, conference rooms, public signage, etc to name a few and can be mounted vertically or horizontally to form one large display of any size.
2, Product introduction
LCD video wall is a special multi-monitor setup that consists of multiple computer monitors, video projectors, or television sets tiled together contiguously or overlapped in order to form one large screen. our video wall use Samsung or LG high definition DID-LCD glass and stable LED back light for panel makes the panel stable and long working time as 7days and 24hours, high resolution up to 4K display. Driving & powerful monitor control board with multi types contectors as HDMI, VGA, DP and AV makes our video could meet various working scenes. Also, be based on few years experience and feedback from our client, our video wall unit not only can be use for landscape position but also could be portrait.
3, Product Specification
| Panel Specification |
| Model No | VD-D3D550BS |
| Panel Size | 3.8mm |
| Aspect Ratio | 16 : 9 |
| Active Display Area | 1209.6(W) x 680.4(H) |
| Backlight | LED |
| Max Resolution Support | 1920x1080(Max) |
| Color | 16.7M |
| Brightness(nits) | 500nits |
| Contrast | 1400 : 1 |
| Visual Angle (H/V) | 178°/178° |
| Response Time | <6ms |
| Life(hrs) | >50,000(hrs) |
| Video Wall Controller(Built-in each screen) |
| VGA input | 1 |
| DVI input | 1 |
| HDMI Input | 1 |
| Composite Video input | 2(BNC x 2) |
| Y,Pb,Pr/Y,Cb,Cr input | 1(BNC X 3) |
| Composite Video Output | 2(BNC X 2) |
| S-video | 2(BNC X 2) |
| Control signal input and loop out | RS232(RJ45-8) |
| Split Screen (Matrix is optional) | Support Picture in Picture(PIP/POP) |
| Video System |
| Color System | PAL/NTSC/SECAM |
| HDTV Mode | 480P, 576P, 720P, 1080P |
| OSD Display(Menu Language) | Chinese/English |
| Power |
| Power supply | AC 100V ~ 240V, 50/60Hz |
| Maximum Power Consumption | <170W |
| Standby Power Consumption | <3W |
| Temperature |
| Working Temperature | 0° ~ 50° |
| Storage Temperature | 20° ~ 60° |
| Working Humidity | 20%~80% |
| Storage Humidity | 20%~80% |
| Installation System |
| Installation | With wall bracket for each single unit lcd |
| Gross Weight | 35kg |
| Dimension | 1213.4X684.2X133 mm |
| Accessories |
| Split LCD Unit | Yes |
| Bracket | Yes(wall bracket for each single unit lcd) |
| Power cable | Yes |
| Remote controller | Yes |
| Video wall controller | Yes(Built-in each screen) |
| Splicing software | Yes |
