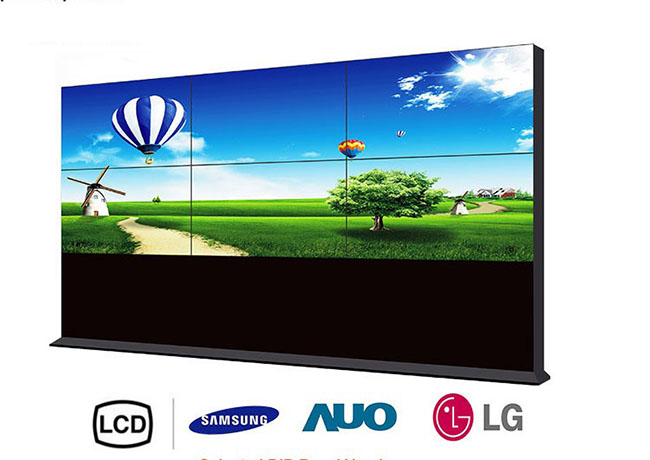

Full HD LCD Indoor Video Wall DID Panel Seamless TV Wall For Advertising
1, Main Features :
1), Integrating multiple signal decoding unit, a liquid crystal drive unit, power supply unit and other parts, can flexible and easily form a large screen display system.
2), All hardware made, professional mosaic chip design, no CPU, operating system and virus infection rish, security and stablity.
3), Multi-screen parallel processing , speed and powerful.
4), Integrated with multi-channel video sources:HDMI,DVI,VGA,CVBS,USB,Network(Rj45),Y/Pb/Pr.
5), Integrated with media codecs, support for H.264, MPEG-2,RMVB,MKV,VC-1 and other encoding formats,support up to 1080P resolution video.
6), Embedded 3D video high color separation circuit unit, 3D digital noise reduction processing unit and the progressive normalization frame rate conversion circuit unit.
7), Support edge compensation, reflecting the overall effect.
8), Can supply the underlying communication protocol, helping user to construct large-screen systems with the third-party or self-preparation software engineering flexible.
9), Embedded smart upgrade firmware system.
10), Designed for high load and long time display applications, support running 24 hours a day continuously.
2, Product introduction
LCD video wall is a special multi-monitor setup that consists of multiple computer monitors, video projectors, or television sets tiled together contiguously or overlapped in order to form one large screen. our video wall use Samsung or LG high definition DID-LCD glass and stable LED back light for panel makes the panel stable and long working time as 7days and 24hours, high resolution up to 4K display. Driving & powerful monitor control board with multi types contectors as HDMI, VGA, DP and AV makes our video could meet various working scenes. Also, be based on few years experience and feedback from our client, our video wall unit not only can be use for landscape position but also could be portrait.
| Panel Specification |
| Model No | VD-D2D390A |
| Panel Size | 3.8MM |
| Aspect Ratio | 16 : 9 |
| Active Display Area | 861.32(W) x 485.63(H)mm |
| Backlight | LED |
| Max Resolution Support | 1920x1080(Max) |
| Color | 16.7M |
| Brightness(nits) | 800nits |
| Contrast | 4000 : 1 |
| Visual Angle (H/V) | 178°/178° |
| Response Time | <6ms |
| Life(hrs) | >60,000(hrs) |
| Video Wall Controller(Built-in each screen) |
| VGA input | 1 |
| DVI input | 1 |
| HDMI Input | 1 |
| Composite Video input | 1(BNC x 3) |
| Y,Pb,Pr/Y,Cb,Cr input | 1(BNC X 2) |
| Composite Video Output | 3(BNC X 3) |
| S-video | 2(BNC X 2) |
| Control signal input and loop out | RS232(RJ45-8) |
| Split Screen (Matrix is optional) | Support Picture in Picture(PIP/POP) |
| Video System |
| Color System | PAL/NTSC/SECAM |
| HDTV Mode | 480P, 576P, 720P, 1080P |
| OSD Display(Menu Language) | Chinese/English |
| Power |
| Power supply | AC 100V ~ 240V, 50/60Hz |
| Maximum Power Consumption | <250W |
| Standby Power Consumption | <3W |
| Temperature |
| Working Temperature | 0° ~ 50° |
| Storage Temperature | 20° ~ 60° |
| Working Humidity | 20%~80% |
| Storage Humidity | 20%~80% |
| Installation System |
| Installation | With wall bracket for each single unit lcd |
| Gross Weight | 25kg |
| Dimension | 873.3 X 501.6 X 115 mm |
| Accessories |
| Split LCD Unit | Yes |
| Bracket | Yes(wall bracket for each single unit lcd) |
| Power cable | Yes |
| Remote controller | Yes |
| Video wall controller | Yes(Built-in each screen) |
| Splicing software | Yes |
3, Installation Types.
Which one video wall installation type can meet your requirements ? Please confirm the installation type with our salesman.
If you have any other questions, please contact our salesman as soon as possible.
