5.7MM Bezel Width LCD video wall controller 2x2 Screen Panel RS232 Output
1, FAQ :
1), what is HS code for LED/LCD Video Wall ?
8528591090 for LED/LCD Video Wall .
2), what brand of screen are you using?
we are using Samsung,LG,AUO and CHIMEI screen.
3), How long you can finish the production?
For the sample order, we can finish the production within 7 working days, If we have it in stock, we can send you the sample within 3 days after received your payment.
4), What is your after-sale service?
One year warranty from the shipping date.We offer 100% guarantee on our product.
5), Which size of LED/LCD Video Wall do you have?
At present, The screen size range of LED/LCD Video Wall includes: 39"/40"/42"/46/47"/55"/60". As for LED/LCD Video Wall solution, we can supply : 1x2,1x3, 2x3, 3x3, 4x2, 4x3, 4x4, 4x5, 5x5, 6x5, 6x4,
6x3, 6x2, 7x2, 7x3, 7x4, 7x5, 7x6, 7x7, 8x2, 8x3, 8x4, 8x5, 8x6, 8x7, 8x8, 9x2, 9x3, 9x4, 9x5, 9x6.
6), Are you a manufacturer or trading company?
We are a manufacturer who has been specializing in producing LCD display for years.
7), What is your MOQ?
Any quantity is acceptable for your order. And the price is negotiable for large quantity.
8), Do you have your own enclosure factory?
Yes we do have our own enclosure factory, and we have the best structural Engineer, we hope to provide
you with best screen and shape, so OEM is also welcome.
9), what payment can you accept ?
T/T, western union , Paypal for payment terms.
For Bulk orders : 30% deposit in advance to start the production, balance payment clear before the delivery.
10), what about the package and transport ?
This question is very important. For sample, i advise that you pick up DHL or Airline as transport mode, for Bulk order, we can send you the goods by sea shipping.
2, Product introduction

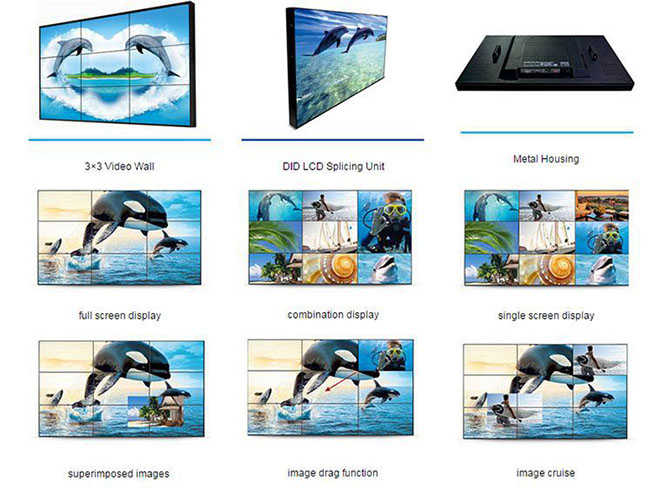

LCD video wall is a special multi-monitor setup that consists of multiple computer monitors, video projectors, or television sets tiled together contiguously or overlapped in order to form one large screen. our video wall use Samsung or LG high definition DID-LCD glass and stable LED back light for panel makes the panel stable and long working time as 7days and 24hours, high resolution up to 4K display. Driving & powerful monitor control board with multi types contectors as HDMI, VGA, DP and AV makes our video could meet various working scenes. Also, be based on few years experience and feedback from our client, our video wall unit not only can be use for landscape position but also could be portrait.
| Panel Specification |
| Model No | VD-D3D460D |
| Panel Size | 5.7MM |
| Aspect Ratio | 16 : 9 |
| Active Display Area | 1018.3(W) x 572.5(H) |
| Max Resolution Support | 1920x1080(Max) |
| Color | 16.7M |
| Brightness(nits) | 450nits |
| Contrast | 3500 : 1 |
| Visual Angle (H/V) | 178°/178° |
| Response Time | <6ms |
| Life(hrs) | >50,000(hrs) |
| Video Wall Controller(Built-in each screen) |
| VGA input | 1 |
| DVI input | 1 |
| HDMI Input | 1 |
| Composite Video input | 2(BNC x 2) |
| Y,Pb,Pr/Y,Cb,Cr input | 1(BNC X 3) |
| Composite Video Output | 2(BNC X 2) |
| S-video | 2(BNC X 2) |
| Control signal input and loop out | RS232(RJ45-8) |

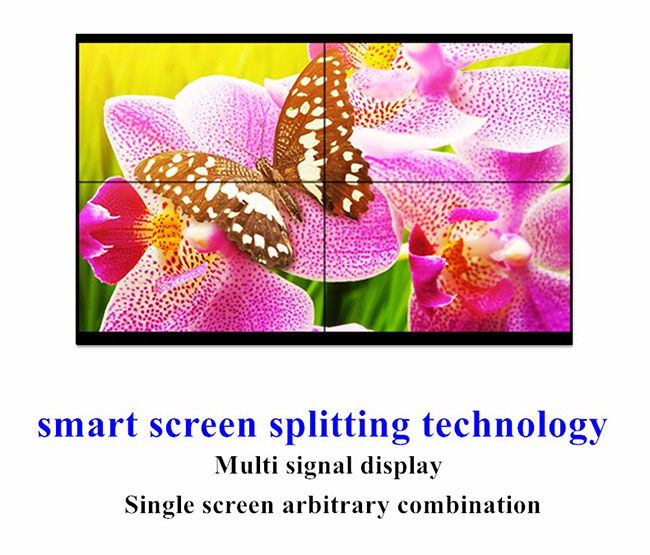

| Split Screen (Matrix is optional) | Support Picture in Picture(PIP/POP) |
| Video System |
| Color System | PAL/NTSC/SECAM |
| HDTV Mode | 480P, 576P, 720P, 1080P |
| OSD Display(Menu Language) | Chinese/English |
| Power |
| Power supply | AC 100V ~ 240V, 50/60Hz |
| Maximum Power Consumption | <200W |
| Standby Power Consumption | <3W |
| Temperature |
| Working Temperature | 0° ~ 60° |
| Storage Temperature | 20° ~ 60° |
| Working Humidity | 5%~95% |
| Storage Humidity | 20%~80% |
| Installation System |

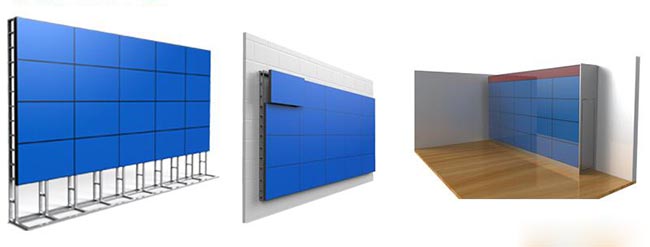

| Installation | With wall bracket for each single unit lcd |
| Gross Weight | 35kg |
| Dimension | 1024X579X123 mm |
| Accessories |
| Split LCD Unit | Yes |
| Bracket | Yes(wall bracket for each single unit lcd) |
| Power cable | Yes |
| Remote controller | Yes |
| Video wall controller | Yes(Built-in each screen) |
| Splicing software | Yes |
