Open Frame LCD Monitor VGA and HDMI input 22 inch Digital Advertising Display
1, Product instruction :
Open Frame LCD Display is a way to give your LCD a decent look and protect it with a cover. They are available for in different kinds and can be used for automation, gaming,digital entertainment,ATM machine,arcade games and for other number of commercial applications.
Open Frame LCD Display is a normal monitor without frame, which can embed in some engineering device, like ATM, Vending machine, POS machine etc.
Open frame monitors offer easy integration into custom enclosures or kiosks and are ideal as a versatile and long-term display platform for OEM and designers.This kind device can be used in both indoor and outdoor environments. and with flexible options for touch screen, signal interface and classic mounting.
2, Main Features :
1), Open Frame/Embedded Design Enclosure.
2), Metal case customization design.
3), Input supply : AC 100V~240V, 50/60Hz.
4), Menu language : Chinese/English(Multiple language supported).
5), Built-in media player(Optional)
7), with Touchscreen panel(Resistive, Saw, projected Capacitive touchscreen is optional).
8), Support media contents like video,pictures,flashes etc.
9), Cost effective price with high quality LED Screen.
10), Multiple signal input interface, to meet diverse application requirements.
3, The Product Specification :
| Panel size | 21.5 inch |
| Display area(mm)/mode | 473.5(H) X 297.4(V) 16 : 9 |
| Maximum resolution | 1920 X 1080 |
| Display color | 16.7M |
| Pixel Pitch(mm) | 0.282(H)×0.282(V) |
| Brightness (nits) | 300cd/m2 |
| Contrast | 1000:1 |
| Visual angle | 178°/178° |
| Response time | 8ms |
| Horizontal frequency | 31~60KHZ |
| Vertical frequency | 56~75KHZ |
| Life(hrs) | 60,000(hrs) |
| input interface | VGA/HDMI |
| Color system | PAL/NTSC/SECAM |
| Menu language | Chinese /English( Multiple Language Supported) |
| Power supply | AC 100~240V 50/60 HZ |
| Maximum power consumption | ≤ 30W |
| Standy power consumption | < 1W |
| Working temperature | 0℃ ~ 50℃ |
| Storage Temperature | below 20℃~60℃ |
| Working Humidity | 10% ~ 75% |
| Storage Humidity | 10% ~ 85% |
| machine body dimension(Lx W x H)mm | 525.7x381.8x55 |
| Panel color / apperance | White, Black, Customized |
| Enclosure Material | Metal Case |
| Net weight | 5.3kg |
| Installation | Embeded |

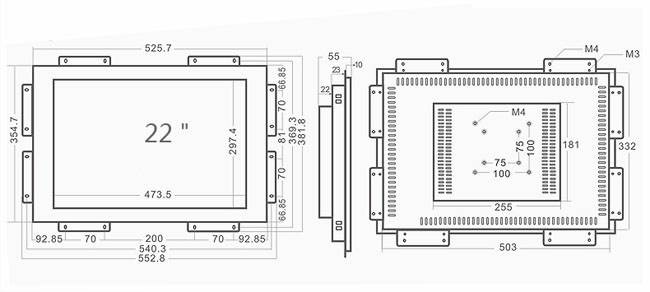

4, The design drawing as follows:

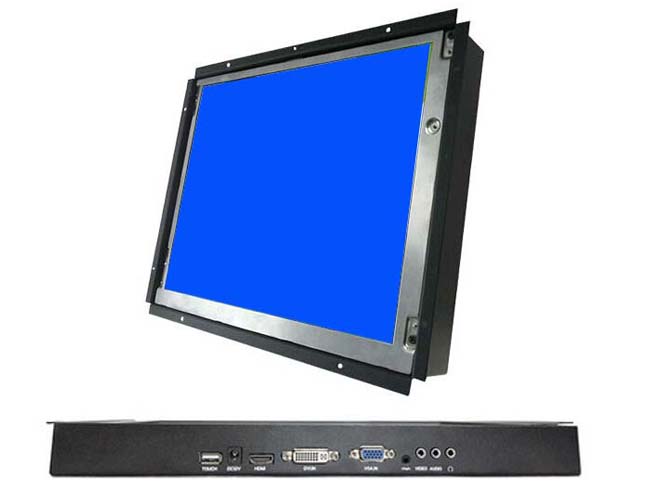

5, Version Options:
You can Consider the device as a frameless monitor with VGA/HDMI/DVI input, you can connect external PC or media box,It is very normal, The difference is only Embeded design.
We are well-known manufacturer of such open frames and can give you best deal under your budget.We are sure that we could be your final choice after comparing our product features and pricing as well. So, just click the type of frame and explore the product description to know more about open frame lcd display. If you have any other question, please contact our salesman as soon as possible.
If you have any other questions, please contact our salesman as soon as possible.
