17 inch Open Frame LCD Display with projected capacitive touchscreen panel
1, Product instruction :
OEM style LCD monitors are designed for special mounting applications. The slim profile packaging provides an excellent solution for building into kiosks, consoles, machines and control panels. If you cannot find an off the shelf solution call us today about designing a custom solution to fit your exact needs. Also available with a rear mounted PC.
17″ Open Frame/OEM LCD design easily installs into your enclosure, cabinet, console, wall, kiosks or other applications. Mounting is straightforward with solid steel metal flanges located on all sides of the LCD each with mounting holes to secure the LCD in place. Our Open Frame LCD products are available with resistive/capacitive touchscreens or without a front overlay.
Stealth offers a wide range of LCD product offerings that include Panel mount, Rack mount and Open Frame designs as standard off-the-shelf products in 10.4″ up to 22″ diagonal sizes. Our LCD products are constructed from solid steel and will meet the demands of your application without breaking your budget.
2, The Product Specification :
| Panel size | 17 inch |
| Display area(mm)/mode | 341.5(H) X 274(V) 4 : 3 |
| Maximum resolution | 1280 X 1024 |
| Display color | 16.7M |
| Pixel Pitch(mm) | 0.264(H)×0.264(V) |
| Brightness (nits) | 300cd/m2 |
| Contrast | 600:1 |
| Visual angle | 80°/80° |
| Response time | 8ms |
| Horizontal frequency | 31~60KHZ |
| Vertical frequency | 56~75KHZ |
| Life(hrs) | 60,000(hrs) |
| input interface | VGA/HDMI |
| Color system | PAL/NTSC/SECAM |
| Menu language | Chinese /English( Multiple Language Supported) |
| Power supply | AC 100~240V 50/60 HZ |
| Maximum power consumption | ≤ 22W |
| Standy power consumption | < 1W |
| Working temperature | 0℃ ~ 50℃ |
| Storage Temperature | below 20℃~60℃ |
| Working Humidity | 10% ~ 75% |
| Storage Humidity | 10% ~ 85% |
| machine body dimension(Lx W x H)mm | 414x345x59.2 |
| Panel color / apperance | White, Black, Customized |
| Enclosure Material | Metal Case |
| Net weight | 3.8kg |
| Installation | Embeded |

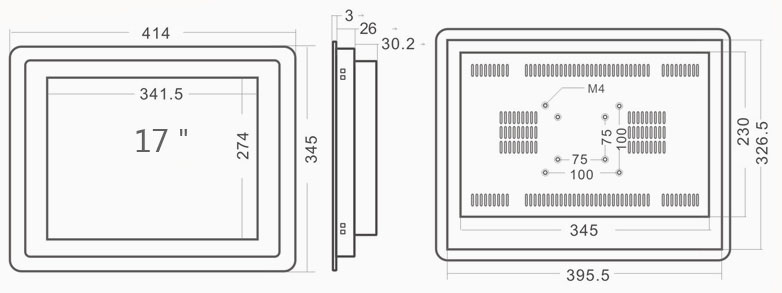

3, The design drawing as follows :
