Indoor Advertising Open Frame LCD Display Video media Player Screen
1, Product instruction :
Open Frame LCD Display is a normal monitor without frame, which can embed in some engineering device, It is a LCD Display with an integral media player, Media files are stored and played back from USB or SD card. When you boot the machine up, it would auto read those files (video/photo)from memory card simple one.
2, The Product Specification :
| Panel size | 15 inch |
| Display area(mm)/mode | 305(H) X 228.5(V) 4 : 3 |
| Maximum resolution | 1024 X 768 |
| Display color | 16.7M |
| Pixel Pitch(mm) | 0.297(H)×0.297(V) |
| Brightness (nits) | 300cd/m2 |
| Contrast8 | 500:1 |
| Visual angle | 178°/178° |
| Response time | 8ms |
| Horizontal frequency | 31~60KHZ |
| Vertical frequency | 56~75KHZ |
| Life(hrs) | 60,000(hrs) |
| input interface | VGA/HDMI |
| Color system | PAL/NTSC/SECAM |
| Menu language | Chinese /English( Multiple Language Supported) |
| Power supply | AC 100~240V 50/60 HZ |
| Maximum power consumption | ≤ 15W |
| Standy power consumption | < 1W |
| Working temperature | 0℃ ~ 50℃ |
| Storage Temperature | below 20℃~60℃ |
| Working Humidity | 10% ~ 75% |
| Storage Humidity | 10% ~ 85% |
| machine body dimension(Lx W x H)mm | 359.5x311x55 |
| Panel color / apperance | White, Black, Customized |
| Enclosure Material | Metal Case |
| Net weight | 3.5kg |
| Installation | Embeded |

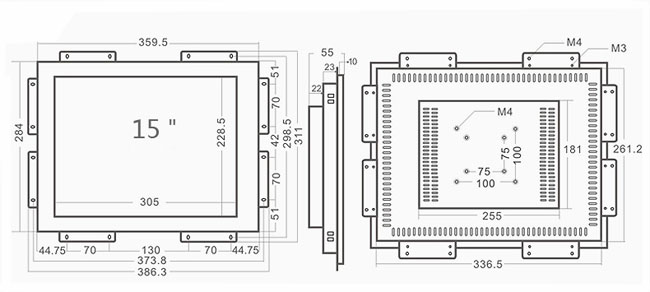

3, The design drawing as follows:
We are well-known manufacturer of such open frames and can give you best deal under your budget.We are sure that we could be your final choice after comparing our product features and pricing as well. So, just click the type of frame and explore the product description to know more about open frame lcd display. If you have any other question, please contact our salesman as soon as possible.
