0.51x0.51 Dot Pitch HDMI Input LCD Monitor For CCTV Camera 5ms Response Time
1, Product Feature :
1) Ultra-slim design, convenient use, delicate appearance .
2) Industrial A+ grade LCD panel .
3) High contrast, High brightness, vivid image layout, bets details performance .
4) Auto eliminate blur function, long life span .
5) Auto adjust VGA image reproduction rate .
6) Quick response time, no trailing effect .
6) Multiple date-image adjustment circuit, low image distortion .
7) Intelligence temperature control fan design, green and quiet .
8) Wide visual angle 178°, aspect ratio 16 : 9 .
9) Rich signal input, output interfaces, adapted in the different environments .
10) Appling the latest 3D digital image decode chipset, the latest DNR, image clear, clean and vivid .
11) Intensive the IR receiver, support the IR remote to modify the monitor parameters .
12) Build-in stable power, low consumption, long life span>60000hours .
2, The specification
| Screen type | 20.1" TFT LED |
| Display area | 408(W) X 306(H) |
| Aspect ratio | 16 : 9 |
| Resolution | 800 X 600 |
| Number of colors | 16.7M |
| Dot pitch | 0.51(H) x 0.51(V) |
| Brightness | 500cd/m2 |
| Contrast | 1000 : 1 |
| Viewing angle | 178°/178° |
| Response time | 5ms |
| HF | 31k~60k HZ |
| VF | 56~75HZ |
| Color system | PAL/NTSC/SECAM |
| Signal interface | 1*BNC(Output), 2*BNC(Input), 1*HDMI, 1*Ypbpr, 1*VGA,Audio in/out(optional) |
| Voltage | AC 100V ~ 240V |
| On mode | 50W |
| Standby mode | 3W |
| Working temperature | 0℃ ~50℃ |
| Working humidity | 20%~80% |
| Net weight | 8.5kg |
| Dimension(mm) | 455 X 353 X 69.5 |
| Installment | desktop/wall mounted |
| Color | Black/white/customized |
| Life | 60000H |
| Certification | FCC/CE/UL |

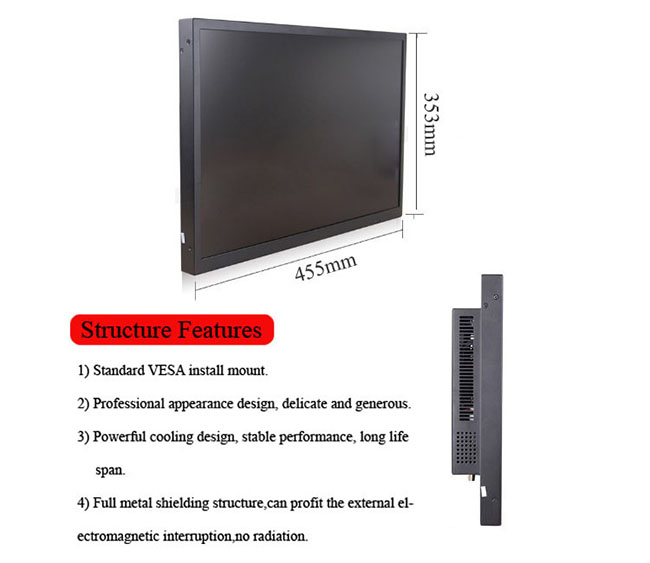

3,The dimension of product
