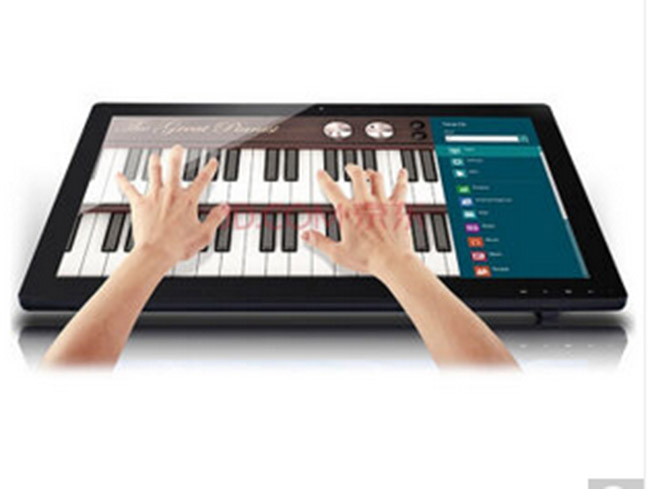

All In One Touch Screen LCD Monitor Wall Mount 1920X1080 Resolution
1, Main Features :
1), Metal Case Enclosure Design.
2), Cost effective price with high quality LED Screen.
3), with 6 points infrared Touchscreen(option multi-points 2/4/10/16/32 points)
4), Support media contents like video,pictures,flashes etc.
5), Intelligent operation system, easy and fast operation.
6), Support for remote network control.
7), All-in-one, to meet diverse application requirements.
8), Independent research and development of hardware and software.
2, Product introduction :
This kind machine is a normal LCD Monitor with touchscreen function. with multiple input signals port, VGA/HDMI/USB/AV, Besides, you can connect the touchscreen monitor with extra PC. Actually, you can see this kind product around you here and there. Some one special application software installed on this kind machine, you can touch the screen to query some information from web page or perform an operation via software. As you seen, interactive Application represent a major trend in the futures market.
Touch screen technoloy draws attention of audience and keeps them there while you delivery your message. Responsive technology works wonders for engaging customers, and giving you a better opportunity to reach them with your advertising.Interactivity encourages sales, and our monitor's durable design will ensure that your advertsing investment will produce captivating results for years to come.
3, The specification of Touchscreen Panel
We usually default infrared touchscreen panel(2 points) with these feature for our machine as follows :
1, Super Touch speed up to 300 dots/second(3ms) brings you an experience of free touch .
2, Function of automatic detecting and correcting guarantees stable working within 2 seconds once any equipment failure is caused by strong interface.
3, Positioning precision is limited within 1mm thanks to adapting of D precision promoting technology and Automatically compensate the touch sensing at four edges, making touching at edges easier.
4, Supporting automatical adjusting of touch according to dust, making less impact caused by dust.
| Touch Max Resolution | 4096 X 4096 |
| Transparency | >90% ; Up to 100% |
| Scanning Speed | >50s scans/S |
| Response speed | <12m |
| Touch type | Horizontal Multiple Dot Touch screen |
| Touch precision | 0.625mm |
| Min Touch object | 5m |
| Touch intensity | Over 60,000,000 Single Point Touch |
| Operation System | Win7 or Win8.1,Win10 |
| Operating Voltage | DC, 5V 5% |
| Power Supply | Keyboard Serial Interface |
| Power | <1W(Current < 200mA) |
| Communication | RS-232 interface Port, USB port |
| Vandal-Proof | Steel Ball (Diameter 63.5mm 1040g weight) drop from 1040mm , No break |
| Temperature Operating | below 41℃~70℃ |
| Temperature Storage | below 50℃~85℃ |
| Altitude | 3000m |
| Noise | None |
| Life Time | >10 year |
4, The Product Specification
| Screen Parameters | Panel size | 27" |
| Display area(mm)/mode | 597(H) X 336(V) |
| Maximum resolution | 1920 X 1080 |
| Display color | 16.7M |
| Pixel Pitch(mm) | 0.311(H)×0.311(V) |
| Brightness (nits) | 350cd/m2 |
| Contrast | 4000:1 |
| Visual angle | 178/178/178/178° |
| Response time | 8ms |
| Life(hrs) | 50,000(hrs) |
| TV Parameters | Colorful standard | PAL/SECAM |
| Channel quantity | ATV(200CH) |
| TV Input | 75 Ω |
| RF connection type | IEC |
| Hi-frequency interface | 1 |
| AV in(yellow) | 1 |
| AV out(yellow) | 1 |
| YPbPr(green bule red) | 1 |
| Multi media | 2 |
| HDMI interface | 2 |
| Voice output power | 8W + 8W |
| Speaker quantity | 2 |
| Surround sound | Y |
| Y | V-SC |
| Front interface | USB Host | 1 |
| USB Touch | 1 |
| HDMI | 1 |
| Power supply | Power Supply | AC 100~240V |
| Max Power Consumption | 90W |
| Standy Power Consumption | 0.3W |
| Working Condition | Working Temperature | 0℃ ~ 40℃ |
| Storage Temperature | below 20℃~60℃ |
| Working Humidity | 10%~90% |
