Digital Signage Kiosk 42 Inch Touch Screen Monitor Circulation Play Mode
1, The working Principle of Standalone version digital signage :
The PCB support Plug-and-Play function. You need save those ads content in USB memory card firstly, and then, when you plug memory card into the card slot, the screen will auto display video or photo. When you need update ads content in original USB memory card, you only need use USB copy by manual operation .
2, The specification of internal Standalone version media player
| Main Feature | Plug-and play, Auto loop play when power on |
| Chipset | MCU |
| RAM | 512 |
| OS | Linux |
| Network | No |
| Input card slot | 2 x USB2.0 |
| Storage Media | Default USB(SD card is optional) |
| Download Media | Auto copy from USB |
| External storage | Support 2G ~ 32GB |
| OSD language | Chinese / English |
| Display Effect | Support 720P/1080P Full HD video/Photo |
| Support Video Formats | AVI,MPEG1,MPEG2,MPEG4,VOB and DIVX(5.0/6.0) |
| Support Audio Formats | MP3 |
| Support Photo Formats | JPG |
| Support Doc formats | TXT |
| Audio Output | Built-in Power amplifer |
| Playback Mode | Repeat one/all, choose to repeat playback one file or all the files |
| Power Supply | AC 100~240V |
3, The Product Specification :
| Panel size | 42" |
| Display area(mm)/mode | 521(H) X 927(V) |
| Maximum resolution | 1080 X 1920 |
| Display color | 16.7M |
| Pixel Pitch(mm) | 0.484(H)×0.484(V) |
| Brightness (nits) | 350cd/m2 |
| Contrast | 1000 : 1 |
| Visual angle | 178/178/178/178° |
| Response time | 8ms |
| Life(hrs) | 50,000(hrs) |
| Max Power Consumption | 240W |
4, The Features of Standing advertising display(Standalone Version)
| Ads updated type | USB copy by manual operation |
| Plug-and-Play | Plug-and-play /No windows OS, Auto loop play when power on |
| Playback Mode | Repeat one/all, choose to repeat playback one file or all the files |
| Daily timer switch | Power can turn on/off automatically at the designated time every day |
| Play logs | Auto generate all detailed play record in memory card |
| Photo slide show | The interval time can be adjusted, 5s/10s/15s/30s/60s/120s/180s is optional |
| Date-time display | Built-in Clock and Calendar, After you setting up date/ time, it can show them |
| Timing function | It can create five sets of timing periods a day, settable in a week(7 days) with 24hours unmanned management |
| DIY Boot Screen | User can use any JPG picture files as boot screen, or even video capture |
| Logo Display | User can make a JPG picture(240X240 pixel) of own logo,the upper left-hand corner of screen will show this logo when play video or photo. |
| Playlist Function | We can offer you playlist software, you can edit those ad files which stored in memory card, it will automatically play them one by one in the specified order |
| Scrolling marquee | You can set up background color,font size and how fast marque scrolling |
| Ads spots | Some one advertisement(like your company promotion video) can auto insert into the one which is curently playing video ads,you can set up the interval time, such as 10 minutes or 20minuts |
| Split-screen | Free to split screen, many mode to select(options are full screen,two split screens,three split screens and so on) according to your needs. |
| Breakpoint memory | Enabling resumption of playing the present playing content on breakpoint memory which the machine automatically recorded in case of breaking. |
| Time Volume | User can set up different volume at different times, different db volume for morning and night separately, or holidays and special occasions. |
| Anti-theft lock | It can prevent U disk and broadcast content from theft, At the same time, the content can be encrypted. |
| Scratch-resistant | Screen surface with ultra-thin, high-transparency toughened glass or acrylic protection layer to protect the LCD screen from artificial damage |
| Installation | Standing (An optional that we can install wheels to make the machine more mobile unless you need) |
5, Product introduction:

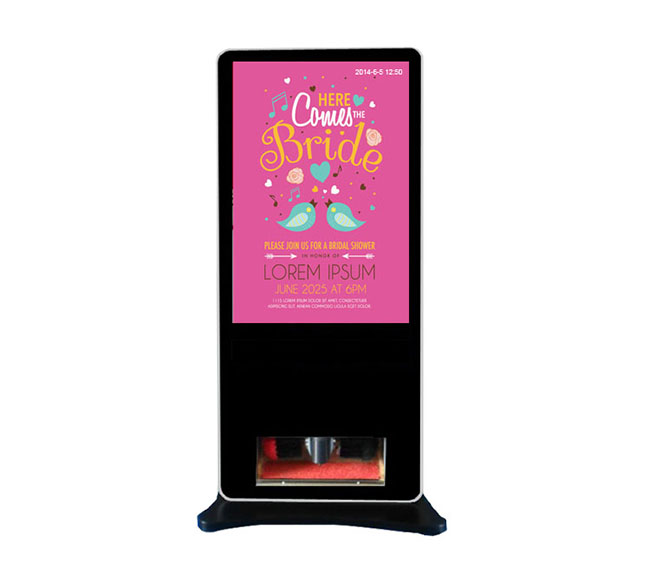

42 inch Kiosk floor standing Advertisement Screen is a LCD Display with an integral media player, Media files are stored and played back from internal SD card. When you boot the machine up, it would auto read those files (video/photo)from memory card simple one. Ad content can be created easily via wifi digital signage which allow advertisers to combine audio, video, image and interactivity by themselves. Digital signage are used for many different purposes. It helps to engage users and also helps advertisers to gain insight in customer behaviors. Ad contents displayed on the signage is presented in one of the following formats:
A, Text - Scrolling text. Either scrolling text, or text dynamically updated via external newsfeed source.
B, Images - Scrolling images, usually in the format of digital advertisement posters.
C, Video - Usually in the format of commercial TV advertisements.
